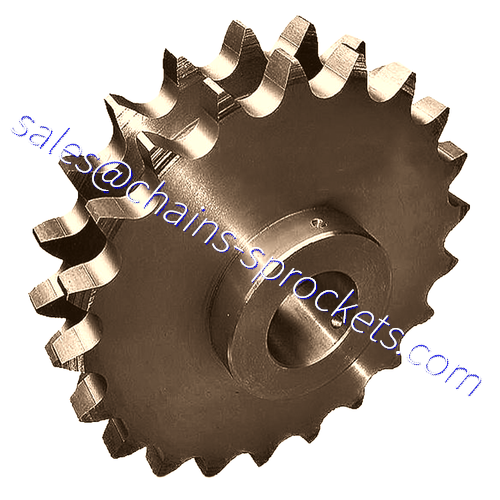

C2082H Double Pitch Stainless Steel Sprockets

We are involved in offering a wide range of Stainless Steel Chain sprockets. These are available in various dimensions as per the requirements of clients. We make use of the finest quality stainless steel sourced from reliable vendors in the industry. These chain sprockets are extensively durable and ensure rough and tough performance. One can avail of these chain sprockets at affordable rates.

Standard Roll Size C2040-C2160H:

The roller diameter and inner width are the same for these sizes as the single-pitch version. But the site is twice as big (hence the name “double site”). Because of the pitch difference, the pressure Angle on the sprocket differs from the single-pitch version. Therefore, for 30 teeth or less, a “double pitch sprocket” must be used for a “double pitch chain.” For 31 teeth and above, double-pitch chains can be used with any standard single-pitch sprocket without operating defects.

For example, the C2060H chain will adequately mesh with the 60B33 sprocket. However, the same chain cannot be engaged with the 60B17 sprocket; In this case, the 2060B17 sprocket must be used.

It is important to note that standard roller double-pitch sprockets are double-duty, which means there are two teeth per pitch. This means that the sufficient number of teeth is half the actual number.

Double Pitch Sprockets Specification:

Double Pitch Sprockets Features:

• Durable in nature
• Robust construction
• Pocket-friendly rates

As one of the leading chains sprockets manufacturers, mechanical product suppliers, and exporters, we supply chains sprockets and many other products for cluster chains sprockets. Chains sprockets, chains sprockets Manufacturer, chains sprockets Supplier, chains sprockets Exporter, chains sprockets Seller, chains sprockets Made In China, Wholesale chains sprockets, Buy chains sprockets, Customize chains sprockets – Find chains sprockets Manufacturers and Suppliers. Choose from quality chains sprockets manufacturers, suppliers, and exporters on chains-sprockets.com.
